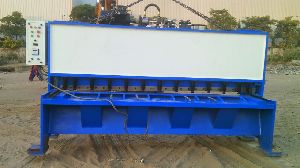

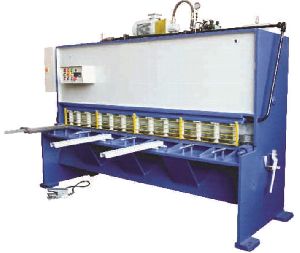

Hydraulic Shearing Machine


Hydraulic Shearing Machine

The company holds expertise in manufacturing, exporting and supplying premium quality Hydraulic Shearing Machine. Optimum shearing condition by variable rank angle, rapid blade clearance adjustment by livers and hydraulic hold down to avoid slippage of sheets are the major features of our Hydraulic Shearing Machine. We are offering Hydraulic Shearing Machine with standard accessories like movable foot switch, front gauge main electric control panel, variable rake angle adjustment with selector switch, operation and maintenance manual book etc. Clients can avail Hydraulic Shearing Machine from us in the required specifications within the stipulated time.

Standard Accessories
  • Main Drive Motor.
  • Etectrical controI paneI
  • Operational Consol.
  • Rake angle selection through selector switch
  • Lever operated Blade ctearance with catibration
  • Fine stroke adjustment rod with limit switch
  • Front sheet support
  • Squaring arm with steel rule
  • Hardened Transfer bars mounted on table
  • Hold down cylinders
  • Cutting area illuminated for ctear view of blades
  • Four edge HCHCr Blade suitabte to MS & 5S
  • Manual Back Gauge

Standard Accessortes (NC Control)
  • HMI with 2 Line 16 character LCD monochrome screen & numeric keypad.
  • Main Drive Motor.
  • Electric ControI Panel.
  • Hardened Ground Ball screw & Linear motion bearings .
  • Two-speed AC motor for back gauge drive.
  • Rake angle setection through selector switch.
  • Lever operated Blade clearance with calibration.
  • Stroke adjustment through screen.
  • Front sheet support.
  • Squaring arm with steel rule.
  • Hardened Transfer bars mounted on table.
  • Hold down cylinders.
  • Cutting area illuminated for clear view of blades.

Optional Accessories
  • Motorized back gauge with DRO.
  • Second squaring arm on other side.
  • Front support with rotter according to required length.
  • Rear Sheet support.
  • Timer bell drive for back gauge.
  • BalI Transfer Table.
  • Degree protector for angutar cutting.
  • Stroke counter.
  • Design with throat depth.
  • First fill of Hydrautic oil.
