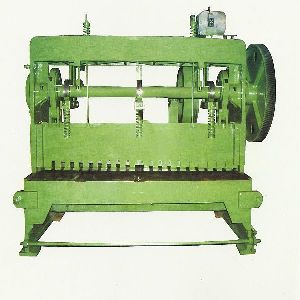

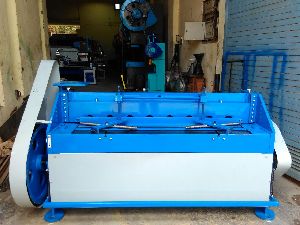

Mechanical Shearing Machine


Mechanical Shearing Machine

Our Mechanical Shearing Machine is highly in demand in steel metal industries worldwide. We specifically design and manufacture our Mechanical Shearing Machine for rapid and continuous cutting of steel sheets of varied widths and trimming them in unlimited lengths. We provide our Mechanical Shearing Machine with all welded steel frame to ensure durability and performance. The Mechanical Shearing Machine, offered by us, has versatile design, rigid construction and has undergone rigorous tests for the capacities and appearance.


Technical Specifications

Dimensions Size RIC -1OC RIC-2OC RIC-3 OC RIC-4 OC RIC-5 OC
Shearing Length mm 1250 1500 2000 2500 3000
Shearing Capacity mm 6, 8, 10, 12 6, 8, 10, 12 6, 8, 10, 12 6, 8, 10, 12 6, 8, 10, 12
Depth of Gap in Frame mm 150 150 150 150 150
Max. Back Gauge Adjustment mm 800 800 800 800 800
Size of Blade (Blade Segment) mm 1270x75x18/25 1525x75x18/25 1016x75x18/25 1270x75x18/25 1016x75x18/25
Length of cut in one Stroke mm 1250 1500 2000 2500 3000
No. of Strokes per minute No. 50 50 50 50 50
Power Required HP/RPM 7.5, 7.5, 15, 15 / 1440 7.5, 10, 15, 15 / 1440 10, 12.5, 15, 20 10, 15, 20, 25 /1440 15, 20, 25, 30 / 1440
Approx. Floor Area Required length x width x height mm 2300x2000x2150 2600x2000x2150 3000x2400x2400 3650x240x2400 4100x2600x2600
