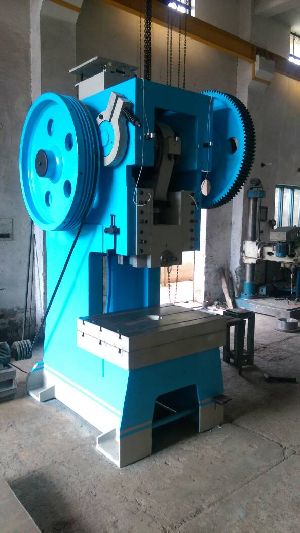

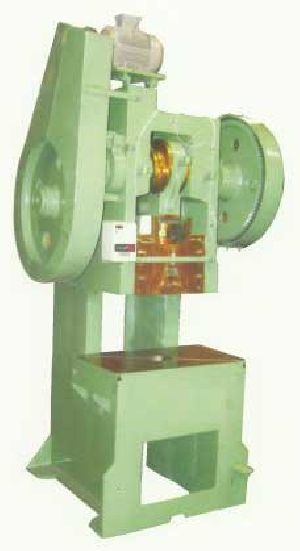

C Type Power Press manufactured by us is a powerful machine having a number of beneficial features. The C Type Power Press has properly aligned parts that contribute to its accurate performance for various power pressing needs. In addition, the C Type Power Press is manufactured under expert supervision and duly tested before being delivered to the clients.
Features :
- High performance
- Robust construction
- Fitted with powerful motor
- Easy to adjust
- Long service life
Specifications
| Capacity in Tons | 5 | 10 | 20 | 30 | 50 | 75 | 100 | 150 | 200 | 250 |
| Bed Size | 220 x 330 | 325 x 435 | 355 x 510 | 432 x 585 | 510 x 760 | 600 x 850 | 60 x 915 | 720 x 980 | 900 x 1100 | 1000 x 1200 |
| Bed to Ram Bottom | 220 | 230 | 255 | 275 | 385 | 400 | 450 | 500 | 550 | 600 |
| Strocke Length | 40 | 50 | 55 | 63 | 80 | 90 | 100 | 145 | 150 | 160 |
| Crank Shaft Dia Out of | 70 | 75 | 80 | 100 | 110 | 130 | 156 | 170 | 250 | 225 |
| Gear Dia | 356 | 430 | 560 | 610 | 660 | 765 | 865 | 965 | 1066 | 1170 |
| Fly Wheel Dia | 480 | 540 | 570 | 685 | 765 | 835 | 965 | 1095 | 1200 | 1270 |
| Hole in Ram for Die Clamping | 25.4 | 25.4 | 31.75 | 31.75 | 38.1 | 44.45 | 50.8 | 63.5 | 63.5 | 63.5 |
| Floor to Top of Bed | 760 | 760 | 760 | 760 | 760 | 760 | 760 | 760 | 760 | 760 |
| No. of Strockes per minute | 70 | 65 | 60 | 60 | 50 | 45 | 35 | 30 | 30 | 28 |
| Overall Height without Motor | 1320 | 1525 | 1730 | 1930 | 2135 | 2290 | 2500 | 2670 | 2950 | 3100 |
| Approx. Floor Area Required | 533 x 685 | 619 x 762 | 711 x 116 | 762 x 1143 | 813 x 1219 | 914 x 1272 | 965 x 1397 | 1143 x 1425 | 1525 x 2006 | 1625 x 2050 |
| Power Requied (1440 RPM) | 1 h.p. | 2 h.p. | 3 h.p. | 3 h.p. | 5 h.p. | 7.5 h.p. | 10 h.p. | 15 h.p. | 20 h.p. | 25 h.p. |
