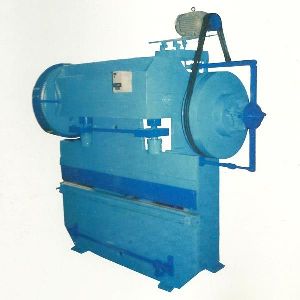

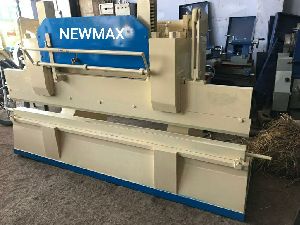

Mechanical Press Brake Machine
| Business Type | Manufacturer, Supplier, Retailer, Wholesaler |
| Type | Brake Machine |
| Certification | CE Certified |
| Application | Bending Plate |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Weight
100-1000kg
Color
Blue
Voltage
1-3kw, 3-6kw, 6-9kw, 9-12kw
Automatic Grade
Automatic
Power
110V, 220V
Driven Type
Mechanical
Warranty
1year
We are offering Mechanical Press Brake Machine to our clients in the national and international market. Our Mechanical Press Brake Machine is widely used for bending, forming metal sheets and various other operations. The Mechanical Press Brake Machine is popular among clients for easy operation, durability and hassle free performance. We have established a credible name in the global market for manufacturing, exporting and supplying Mechanical Press Brake Machine.
Technical Specifications
| Model | Tons | Bending capacity in Mild steel length x thickness | Clearance between housings | Strokes per minute | Strokes of Ram (M.M) | Ram Adjustment (M.M) | Shut Height Ram Stroke | Depth of throat (M.M) | Main Motor HP/Kw | Ram Adjustment Motor HP/KW | Overall Dimensions | ||
| L | W | H | |||||||||||
| A | B | C | |||||||||||
| RPB – 1 20 | 20 | 1525x1.6 | 1000 | 25 | 50 | 50 | 200 | 250 |
05/3.7 |
Manually | --- | --- | --- |
| RPB – 2 25 | 25 | 2000x1.6 | 1300 | 25 | 50 | 50 | 200 | 250 | 05/3.7 | Manually | 2300 | 1150 | 2075 |
| RPB – 3 40 | 40 | 2000x2.5 | 1300 | 25 | 50 | 50 | 200 | 250 | 7.5/5.8 | 1/0.75 | 2300 | 1150 | 2075 |
| RPB – 4 60 | 60 | 2000x3.25 | 13000 | 25 | 60 | 50 | 200 | 250 | 7.5/5.6 | 1.5/1.1 | 2300 | 1150 | 2075 |
| RPB- 5 80 | 80 | 2500x4 | 1900 | 25 | 75 | 50 | 275 | 300 | 10/7.6 | 2.0/1.5 | 2900 | 1500 | 2620 |
| RPB – 6 100 | 100 | 2500x4.5 | 1900 | 25 | 75 | 50 | 275 | 300 | 15/11.2 | 2.0/1.5 | 2900 | 1500 | 2620 |
| RPB – 7 120 | 120 | 2500x6 | 1900 | 25 | 75 | 50 | 275 | 300 | 20/15 | 2.0/1.5 | 2900 | 1600 | 2620 |
| RPB – 8 160 | 160 | 3125x6 | 2050 | 25 | 75 | 50 | 275 | 300 | 30/22.4 | 2.0/1.5 | 3400 | 1900 | 2660 |
