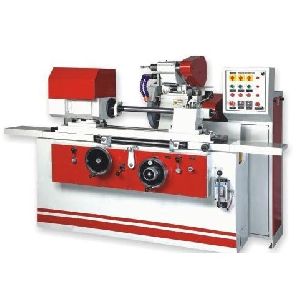

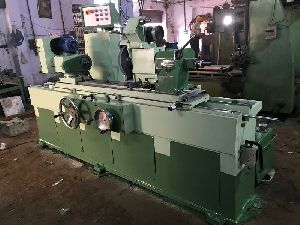

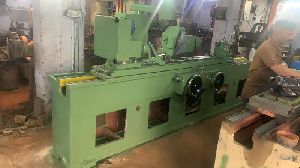

Hydraulic Cylindrical Grinding Machine




Being the quality centric organization, we are offering Hydraulic Cylindrical Grinding Machine to our clients. The slide ways of our Hydraulic Cylindrical Grinding Machine are coated with TURCITE-B. Our Hydraulic Cylindrical Grinding Machine comes with hydrodynamic bearings for wheel spindle. Moreover, our Hydraulic Cylindrical Grinding Machine is well equipped with centralized lubrication system. We are prominent Hydraulic Cylindrical Grinding Machine Manufacturer, Exporter and Supplier based in India.

Special Features :

  • Slide ways coated with 'Turcite¬† B'
  • Hydrodynamic bearings for wheel spindle
  • Centralized lubrication system.


Optional :

  • Internal Grinding Attachment
  • Automatic plunge & Traverse Grinding cycle
  • Workhead & wheelhead spindle with anti friction bearings

Specifications

Type Cylindrical Grinding Machine
Certification CE Certified
Weight 1-5 Ton
Color Multi Colour
Voltage 110V, 220V
Automatic Grade Automatic
Power 1-3kw, 10-15kw
Warranty 1 Year


Technical Specifications

Centre Height

150

200/250

Max. Gr. Length

300/500/800

1000/1250/1500/1700

Rapid approach

50

50

No. of wkhd. Speeds

4

8
